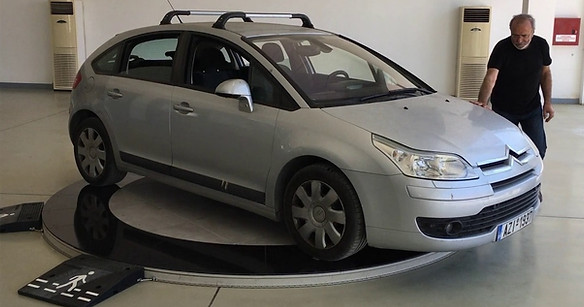

A platform that rotates a car around its vertical axis.

The Car-Twister with TurnRing technology promotes a state of the art solution in turning a car around its axis.

It is inventive as it introduces the idea of ​​a surface, where only the ring defined by the car wheels is rotating, unlike the Car Turntable technology where the entire disk is rotating.
The implementation leads to the use of similar low-profile circular arcs, which are industrialized, easily transported stacked on a pallet and assembled together to form the ring, which rests on a flat surface.

The perimeter function can be expanded by simply adding a new ring to accommodate larger cars, or even two cars at the same time.
The flexibility in use, the industrialization, the standard transport and the easy installation, give the construction a commercial advantage, in order to cover an existing need:  the rotation of the car on the spot.

Car-Twister facilitates the driver in the movement to and from the car's parking and offers the best possible utilisation of the available space.

Technology: Text
Cat Twister Mechanism.jpg
CT 03
Cat Twister Mechanism2_edited.jpg
Cat Twister Mechanism3.jpg
CT 04_Detail
For Manufacturer
Benefits

Benefits

For the Manufacturer

  • The rotating part of the platform of Car-Twister is the necessary ring on which the car wheels are pressed, with a height of 80mm.

  • The ring is Modular and consists of identical circular arcs that can be manufactured.

  • The arches and all the elements that make up the platform have dimensions and weight that can be handled by one person only and can be placed on a pallet (euro-pallet 1200mm X 800mm).

  • The ring can be extended by adding a new ring internally and externally in order to rotate a car with a smaller or larger wheelbase or to rotate two cars.

  • No infrastructure works are required for the installation of the platform, providing that the installation surface is flat.

  • Easily assembled even by one person.

  • There is no competing product with Car-Twister that has similar characteristics.

Technology: Text

Benefits

For the User

  • The user of Car-Twister can manage the parking space in a most convenient way, gaining parking spaces and performing much less maneuvers.

  • Maximum possible utilisation can be achieved, when the ring's use is foreseen already during the design phase of the parking lot.

  • The exit from the parking lot is always done driving in a straight forward manner and not reverse.

  • The ring can be extended with a new ring internally and externally in order to rotate a car with a smaller or larger wheelbase or to rotate two cars.

  • No infrastructure works are required for its installation, providing that the installation surface is flat and the platform is stabilised by its weight. (approximately 500Kg).

  • The car can be rotated either electrically or manually.

  • Short installation time.

  • The construction materials are 100% recyclable (polypropylene and stainless steel).

  • Car-Twister can also be installed outdoors.
